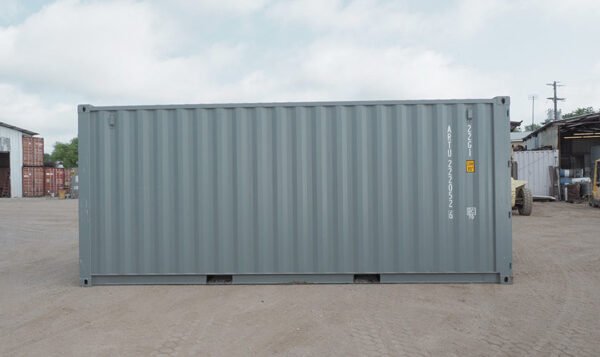

20ft High Cube One-Trip Container — Food Grade IBC Liquid Storage

Thermal Power planning

New One-Trip 20ft High Cube food grade IBC storage container in grey. Fits 16 x 1,000L IBCs, no prior cargo contamination, side and end doors. Enquire today.

£2,500.00

Description

20ft High Cube IBC Container Dimensions

Measurement	Metric	Imperial
External Length	6,058 mm	20′
External Width	2,438 mm	8′
External Height	2,896 mm	9’6″
Internal Length	5,898 mm	19’4″
Internal Width	2,352 mm	7’8″
Internal Height	2,698 mm	8’10”
End Door Opening Width	2,340 mm	7’8″
End Door Opening Height	2,585 mm	8’5″
Floor Area	14.86 m²	160 sq ft

Food Grade IBC Storage Capacity

IBC Type	Capacity Per IBC	Units Per Container	Total Storage Capacity
Food Grade IBC	1,000 L	16	16,000 L

Food Grade IBC Container Specifications

Condition: One-Trip (New) — Never previously loaded.

Feature	Detail
Construction	All Cor-Ten steel — rust and corrosion resistant
Flooring	28mm marine plywood on steel cross-members
End Doors	Hinged double doors — full-width 8ft end opening
Side Doors	Hinged double doors — full-length 20ft side opening
Locking Bars	2 per door — side and end doors
Lockboxes	Factory-fitted on all doors
Ventilation	4 vents — passive airflow and temperature management
Forklift Pockets	2 per side — 4 total
CSC Plate	Yes — max gross weight 30 ton
Colour	Grey
ISO Standard	ISO 668 Series 1

Why One-Trip Matters for Food Grade Liquid Storage

No Prior Cargo Contamination

Used containers carry residual contamination risk from previous cargo — chemicals, solvents, non-food materials, and odour-causing compounds that absorb into timber flooring and wall surfaces. Furthermore, this contamination risk is unacceptable for food-grade liquid storage where ingredient purity and traceability are compliance requirements.

A One-Trip container eliminates this risk. The interior is factory-new — no prior cargo, no residue, no contamination history. As a result, it provides a food-safe ambient storage environment from the moment it arrives on site.

IBC Height Clearance

Food-grade IBCs with top inlet fittings, breather valves, and fill connections require 2,420–2,500mm of interior clearance to sit level with connections fully accessible. Moreover, the High Cube interior height of 2,698mm provides this clearance with room to spare — protecting fittings and connections from door damage during loading and operation.

Dual Access for Food Handling Equipment

The full-length 20ft side doors allow forklift and pump equipment lateral access to all 16 IBC positions simultaneously. Therefore, food production teams access any IBC in the storage layout without repositioning other tanks — reducing handling time and spill risk during ingredient draws.

Key Features

One-Trip condition — no prior cargo, no residue, food-safe interior from day one
Fits 16 x 1,000L food-grade IBC tanks — 16,000L total ingredient storage
2,698mm interior height — correct clearance for IBCs with top inlet fittings
Side and end door access — lateral forklift and pump equipment entry
Factory-fitted lockboxes on all doors — ingredient security and tamper protection
2 locking bars per door — dual security on every access point
4 passive vents — ambient temperature and airflow management
28mm marine plywood floor — forklift-rated, moisture-resistant base
4 forklift pockets — easy repositioning without specialist equipment
CSC plated to 30 ton maximum gross weight
Grey Cor-Ten steel exterior — clean, neutral finish for food production environments

Food and Beverage Storage Applications

Edible oils — bulk olive, canola, sunflower, and palm oil ingredient storage
Liquid sweeteners — glucose syrup, liquid sugar, honey, and fructose
Flavour concentrates — liquid flavourings, essences, and extracts
Dairy liquids — liquid milk solids, cream, and whey concentrates
Vinegars and acids — food-grade acetic acid and liquid acidulants
Beverages — juice concentrates, cordial bases, and liquid malt
Sauces and condiments — bulk liquid ingredient storage for FMCG manufacturing
Cleaning and sanitation chemicals — food plant CIP chemicals in separate IBC storage
