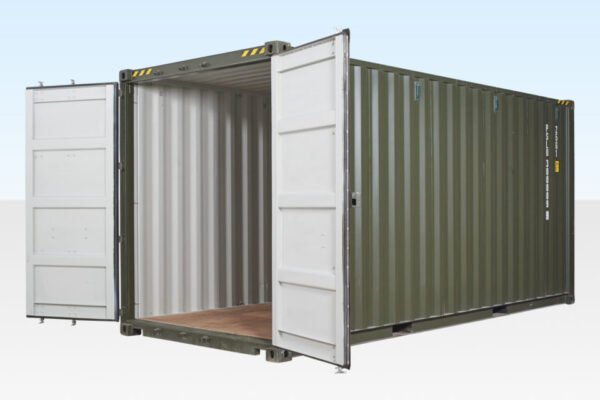

New One-Trip 20ft High Cube export container — valid CSC plate, full ISO 668 Series 1 compliance, accepted on all major global shipping lines. The 9’6″ High Cube profile provides 2,698mm of interior clearance for tall export cargo without open top surcharges. Cor-Ten steel, marine ply floor, lockbox, 2 locking bars per door, 4 forklift pockets, 4 vents, CSC plated 30 ton. Condition: One-Trip (New) — Never previously loaded.
£2,850.00
| Measurement | Metric | Imperial |
|---|---|---|
| External Length | 6,058 mm | 20′ |
| External Width | 2,438 mm | 8′ |
| External Height | 2,896 mm | 9’6″ |
| Internal Length | 5,898 mm | 19’4″ |
| Internal Width | 2,352 mm | 7’8″ |
| Internal Height | 2,698 mm | 8’10” |
| Door Opening Width | 2,340 mm | 7’8″ |
| Door Opening Height | 2,585 mm | 8’5″ |
| Floor Area | 14.86 m² | 160 sq ft |
| Internal Volume | ~39 m³ | ~1,380 cu ft |
| Measurement | Weight |
|---|---|
| Tare Weight (Empty) | 2,300 kg |
| Payload Capacity | 27,700 kg |
| CSC Plated Max Gross Weight | 30,000 kg (30 ton) |
Condition: One-Trip (New) — Never previously loaded.
| Feature | Detail |
|---|---|
| CSC Plate | Valid — certified for active international shipping |
| ISO Standard | ISO 668 Series 1 — full dimensional compliance |
| Intermodal Compatibility | Road, rail, and sea — no modification required |
| Construction | All Cor-Ten steel — rust and corrosion resistant |
| Corner Castings | ISO standard forged steel — crane and twistlock compatible |
| Flooring | 28mm marine plywood on steel cross-members |
| Doors | Exterior hinged double doors — full-width end opening |
| Door Seals | Rubber gaskets — weatherproof and cargo-secure |
| Locking Bars | 2 per door — cargo seal compatible |
| Lockbox | Factory-fitted — padlock and seal protection |
| Forklift Pockets | 2 per side — 4 total |
| Ventilation | 4 vents — passive airflow during transit |
| Colour | Olive Green |
| Requirement | This Container |
|---|---|
| CSC Plate | ✅ Valid — issued at manufacture |
| ISO 668 Dimensional Compliance | ✅ Full compliance — 20ft High Cube |
| Intermodal Road Compatibility | ✅ ISO corner castings — twistlock and spreader bar compatible |
| Sea Freight Eligible | ✅ Accepted on all major shipping lines |
| Rail Freight Eligible | ✅ ISO standard footprint — fits standard rail well cars |
| Port Acceptance | ✅ No re-certification required at point of loading |
The CSC plate certifies this container as structurally sound for international intermodal transport. Furthermore, it was issued at the time of manufacture — not retrospectively — confirming the container was built to the required standard from the factory floor.
Export cargo exceeding standard 20ft container clearance loads into the High Cube interior without resorting to open top or flat rack configurations. Furthermore, the sealed High Cube protects machinery, equipment, and sensitive cargo from weather exposure during ocean transit — unlike open top alternatives.
Australian agricultural exporters use High Cube containers for bulk bagged goods, palletised produce, and tall commodity loads. Moreover, the extra interior height accommodates double-stacked bulk bags and taller palletised configurations — maximising cubic utilisation per container on export voyages.
Mining equipment, spare parts, and plant machinery ship internationally in High Cube containers where standard clearance is insufficient. As a result, exporters avoid expensive open top surcharges and weathering risk on high-value equipment shipments.
ISO compliance and valid CSC certification allow this container to move seamlessly across road, rail, and sea without transfer to a different unit. Therefore, it suits door-to-door freight operations where cargo integrity and handling minimisation are critical.
Browse our full range of High Cube shipping containers or explore our modified container range for additional export and storage configurations.
