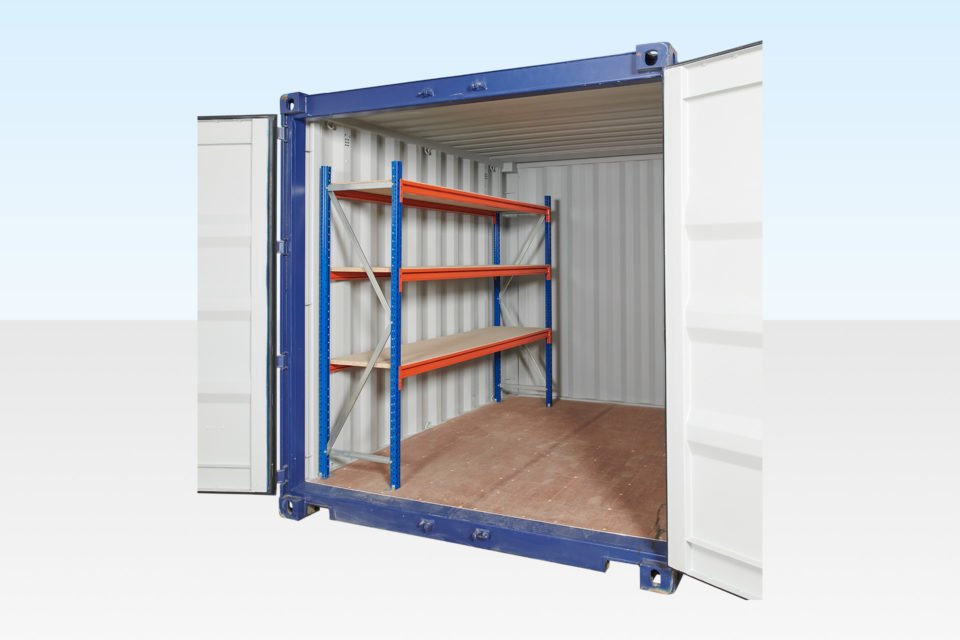

Shipping Container Racking Kit | 3-Tier Steel Shelving

Description

Racking Specifications

Specification	Detail
Bay Width	2250mm
End Frame Height	2000mm (2m)
End Frame Width	600mm
Shelf Tiers	3
Beams Per Shelf Level	2
Shelf Material	25mm chipboard
Shelf Load Capacity	550kg per shelf
Height Adjustment	50mm increments
Steel Finish	Powder coated — blue and orange
Beam Retention	Safety clips included on all beams
Kit Coverage	Single side — one 2250mm bay

Container Compatibility — Maximum Bays Per Side

This racking suits all standard ISO Series 1 freight containers. In addition, multiple kits run side-by-side in longer containers to fill the full wall length.

Container Size	Max Bays Per Side	Kits Required (Both Sides)
10ft	1	2
20ft	2	4
40ft	5	10

Note: Racking mounts on both side walls. However, the end wall does not provide sufficient clearance for a full bay. Plan your layout accordingly before ordering.

Key Features

Two pre-assembled end frames — no cutting, welding, or drilling required
Beams slot directly into end frame uprights for rapid assembly
Safety clips lock all beams and prevent accidental dislodgement under load
Shelf heights adjust in 50mm increments to suit your stock profile
Each shelf supports up to 550kg of evenly distributed weight
All steel powder coated in blue and orange — corrosion and scratch resistant
25mm chipboard shelf panels included per tier

Assembly Overview

The end frames arrive pre-assembled. Therefore, on-site setup is fast with no specialist tools required.

Step 1 — Position the End Frames

Stand both end frames upright along the container side wall. Space them 2250mm apart.

Step 2 — Slot in the Beams

Slot two beams per tier into the corresponding height holes on each end frame. Furthermore, repeat for all three shelf levels.

Step 3 — Attach Safety Clips

Clip the safety clips onto each beam end. As a result, the beams are locked and cannot dislodge under load.

Step 4 — Lay the Chipboard Shelves

Place the 25mm chipboard panels onto each beam pair. The shelves sit flat and are ready to load immediately.

How Many Kits Do I Need?

This kit covers one side of the container with a single 2250mm bay. Order two kits to rack both sides. Additionally, for longer containers, multiply by the number of bay positions required per side. Refer to the compatibility table above for a per-size kit count.

Suitable For

Tool rooms and parts stores inside on-site storage containers
Retail overflow and warehouse storage
Construction site containers — keeps equipment and materials off the floor
Agricultural storage — seeds, chemicals, and small equipment
Workshop and garage containers
