The 4M X 4.2M Side Linked Flat Pack Container Bundle (Galvanised) is a strong option for USA customers who need a reliable flat pack storage building for planned storage, transport, property, or commercial use. Size noted in the title: 4m.
£3,552.00
Estimated Arrival 5-13 Business Days
– Flat-rate UK mainland delivery (including Northern Ireland) from our yard in Tamworth.
– Offshore islands, Republic of Ireland and remote areas: delivery on request, quoted individually (see Shipping Policy).
– 30 days return policy

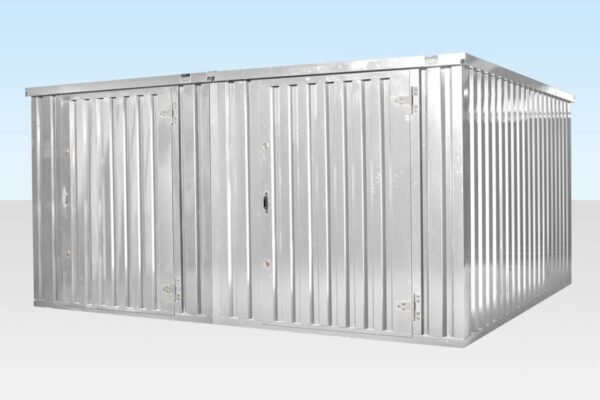

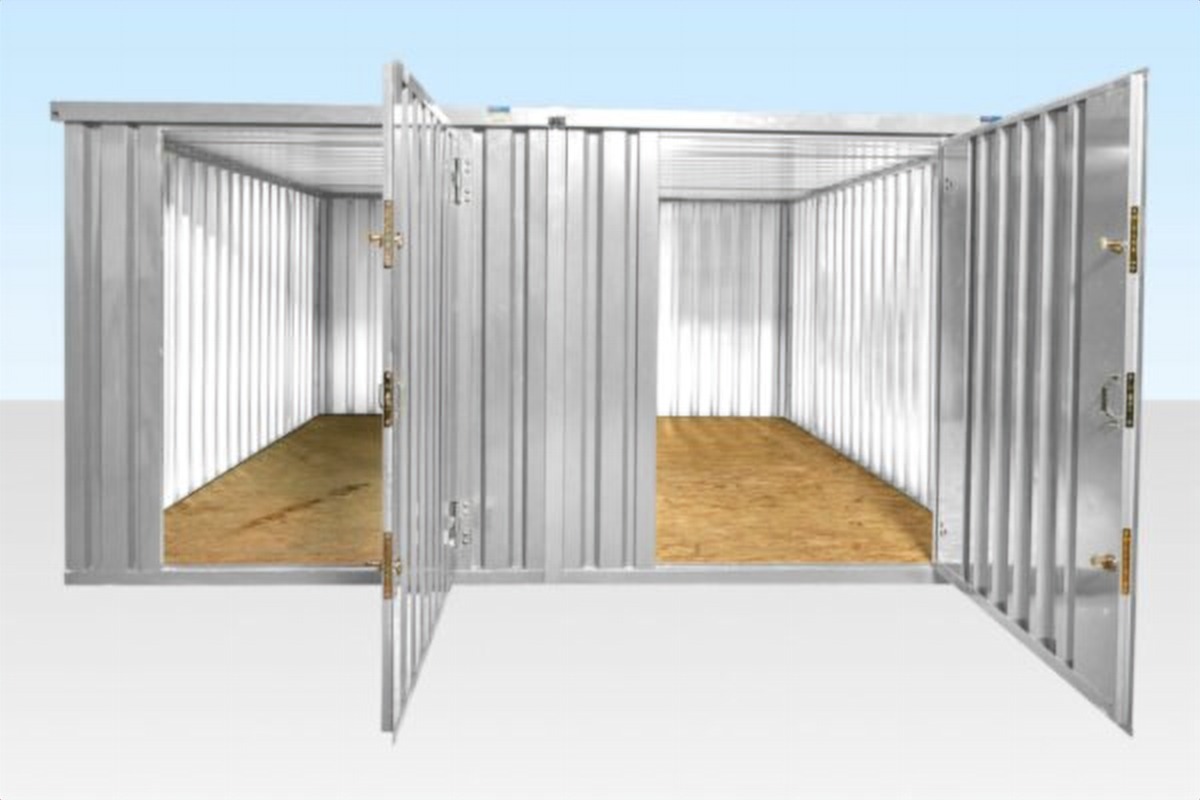

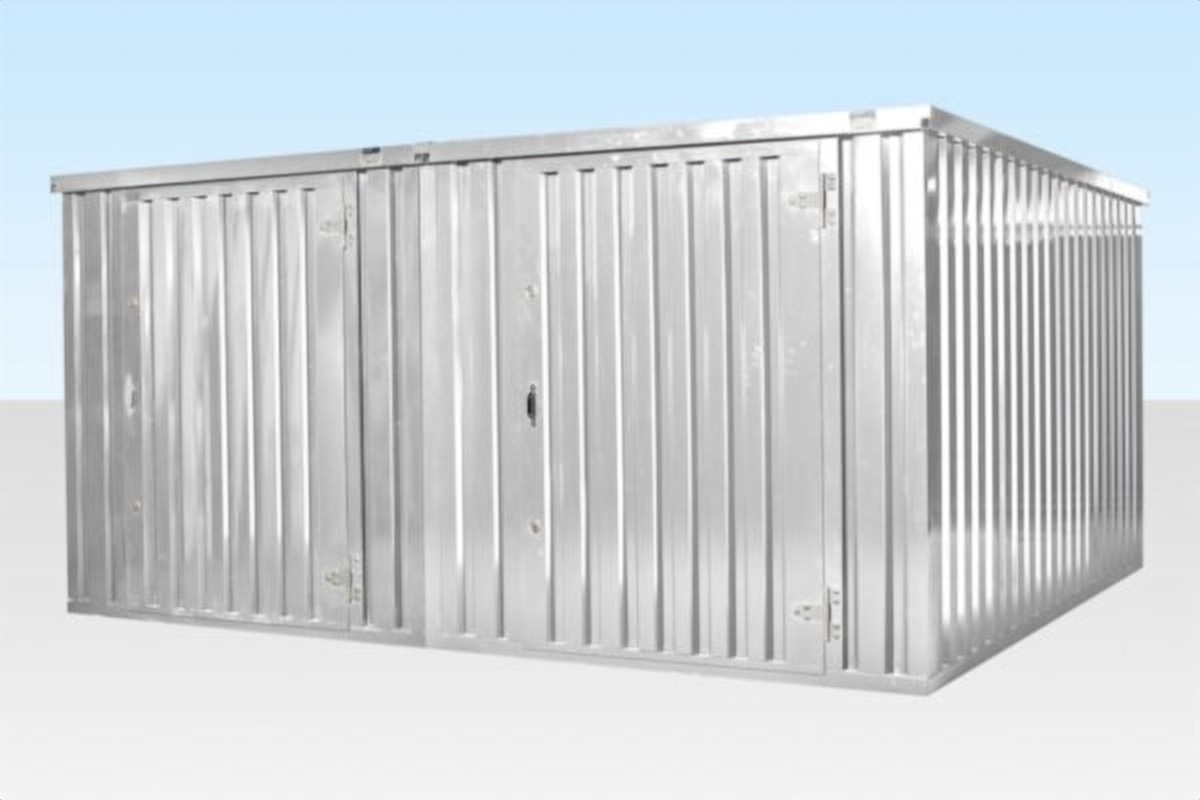

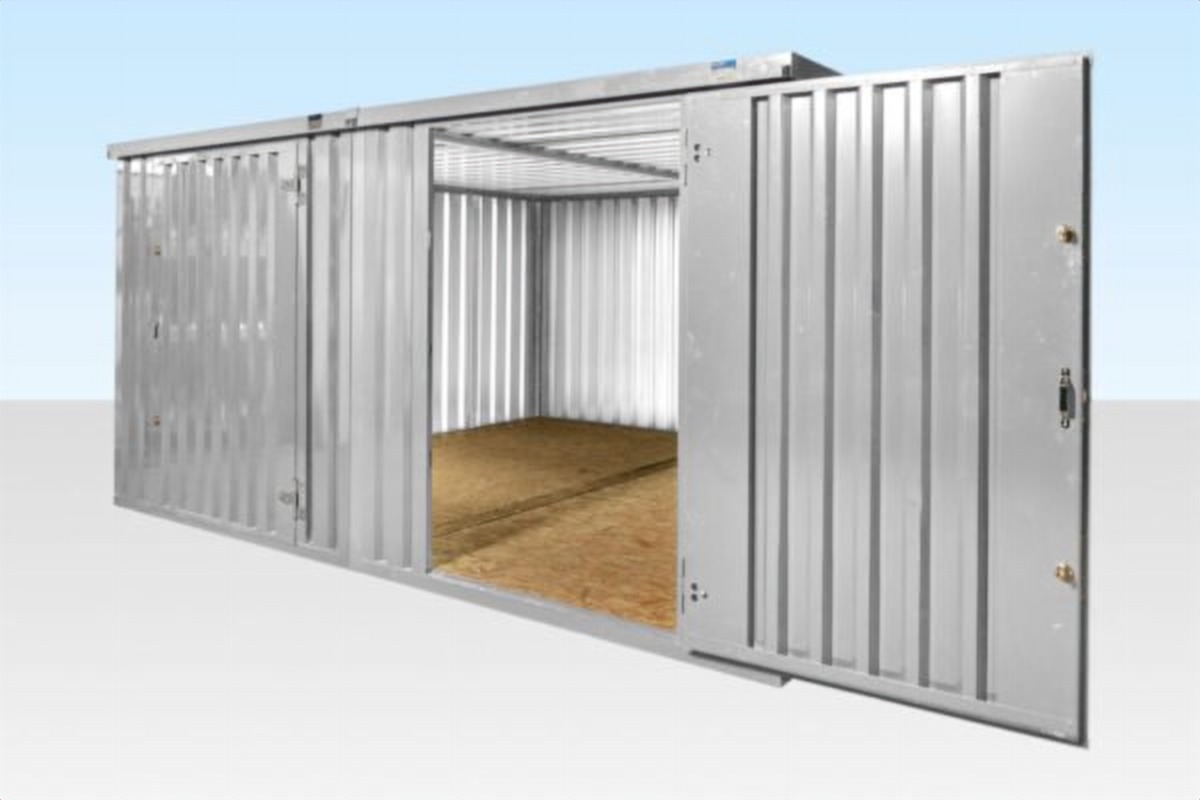

When site access restrictions make delivering a fully assembled 20ft shipping container impossible, the 4m x 4.2m Side-Linked Flat Pack Container Bundle provides the ultimate solution. By joining two individual 4m x 2.1m galvanised units side-by-side with a weather-sealed joining kit, you create a wide open-plan 16.8 m² room without center walls or internal obstructions.
This double-width modular configuration is ideal for site offices, workshop extensions, athletic equipment stores, and commercial inventory overflow.
Corrosion Protection: Manufactured entirely from heavy-duty galvanised steel sheet and box section framing, offering long-term protection against rust, weather, and harsh industrial environments.
Low Maintenance: Unlike painted steel containers that require periodic repainting, the raw galvanised finish resists scratching and weathering without maintenance.
Man-Portable Components: Delivered in flat-packed panels that can be carried through narrow side gates, alleyways, and restricted doorways by 2–4 people.
Simple Bolt-Together Assembly: Assembled on-site using standard socket sets and screwdrivers. The included side-linking kit includes weather-proof rubber seals and structural bridging plates to create a fully watertight joint.
Double Deadlocking System: Fitted with high-security door locks, reinforced hinges, and anti-pry bar flanges to safeguard valuable tools, inventory, and office equipment.

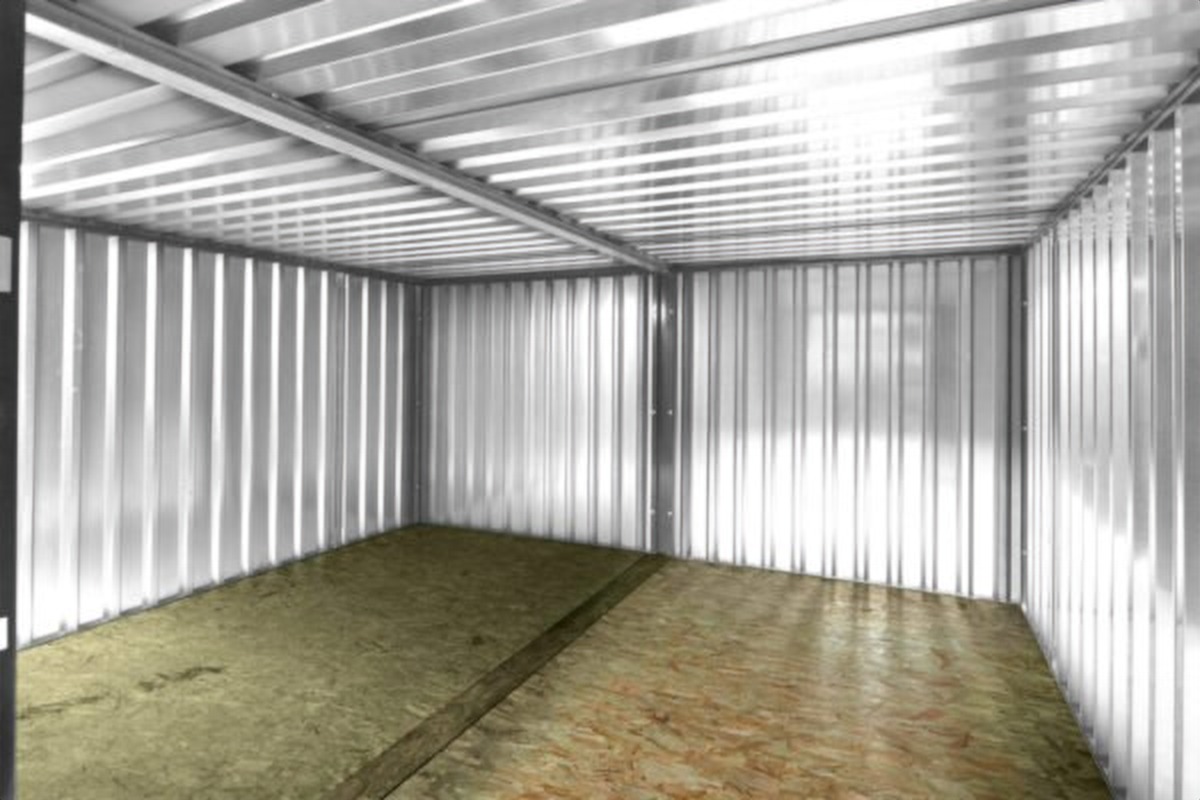

Heavy-Duty Floor Construction: Supported by galvanised steel cross-members and 18mm OSB3 flooring capable of supporting heavy machinery and palletized loads (up to 500 kg/m² uniformly distributed load).
| Specification Feature | External Linked Dimensions | Internal Cavity Dimensions | Door Access Clearance |
| Length | 4.00 m (13 ft 1 in) | 3.88 m (12 ft 9 in) | Door Width: 1.15 m (3 ft 9 in) |
| Width (Linked) | 4.20 m (13 ft 9 in) | 4.08 m (13 ft 5 in) | Door Height: 1.95 m (6 ft 5 in) |
| Height | 2.10 m (6 ft 11 in) | 1.98 m (6 ft 6 in) | Locking System: Double-locking system with euro-cylinder deadlocks |
| Total Floor Area | 16.8 m² (180.8 sq ft) | ~15.8 m² (170 sq ft) | — |
| Combined Weight | ~920 kg – 960 kg | — | — |
| Material Finish | High-grade hot-dipped galvanised steel (rust-resistant, unpainted raw steel finish) | — | — |
| Flooring | 18mm OSB3 wooden flooring mounted on galvanised steel box-section joists | — | — |
| Handling Method | Flat-packed components; manually offloadable and maneuverable through tight alleys | — | — |
Delivery Method: Shipped flat-packed on flatbed vehicles across mainland UK.
Offloading Options: Offloaded manually panel-by-panel or by forklift/HIAB crane upon request.
Base Requirements: Must be assembled on a flat, level, and solid foundation (concrete pad, block paving, or timber sleepers) to ensure panels align correctly and door mechanisms swing freely.
